9 x 16 Greenhouse Plans. Polycarbonate covered, cedar framed, designed for high winds, hail and heavy snow loads. 8 Roof Vents, Spring Sale

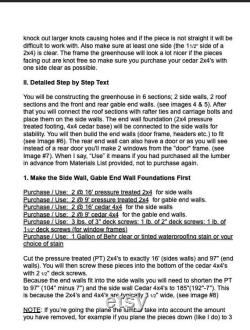

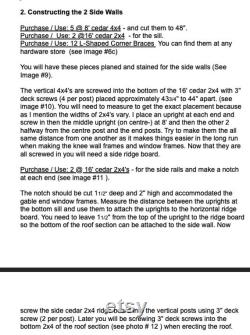

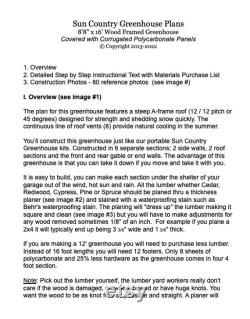

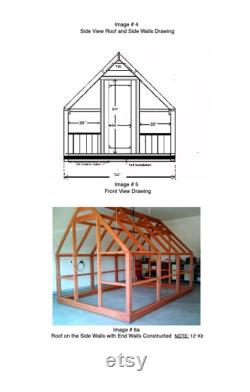

Build a cedar framed, polycarbonate covered 9' (in fact exactly 104 wide) x 16 foot hobby greenhouse (shorten to 12' if desired) that can handle high winds, heavy snow loads and hail. Protect your plants & extend your growing season with a beautiful chalet style cedar greenhouse. The sun country greenhouse company. These plans are not cad or computer assisted drawings. See screenshot examples in description / photos.

The step by step process is very detailed using 60 reference photos to show you what the step your working on looks like during construction. For more greenhouse photos and rough polycarbonate sheet cuts go to. You tube videos of sun country greenhouses.

Important information - please read this. Google "corrugated polycarbonate sheets" and add nearest city near you. Google "multi wall polycarbonate sheets" and add nearest city near you.

Amerilux international sells both types. Ask salesperson about connecter and end cap hardware. Ask salesperson about foam gaskets (greca profile).

Materials list: estimate the cost of building your greenhouse. 10 - 8' x 4' sheets polycarbonate for 16' corrugated actually 50 wide (overlap). 525 - 1 1/2 tek screws with washers or metal roof screws (colored).

450 - 1/2 tek screws (side and gable end windows) no washers. 100 - #8 hex screws for door window 1/2 no washers. 16 - 3 butt hinges for vents. 5 lbs - 3 1/2 deck screw / 3 lbs - 2 deck screws / 2 lbs 1 deck screws. 12 l shaped 3 connector brackets (3 per corner). Stain of your choice behr clear cedar is really nice. Pressure treated lumber used for the base/footing of foundation. Do not put cedar directly on the ground it will suck up moisture like a wick leaving water stains. You can also use smart panels and paint. (see photo of green sidewalls). Make sure they are straight and only tight knots. Full size table saw - compound miter saw - thickness planer.

Compressor and nailer - power screw driver - shop vac. Save pieces over 20 for framing and trim. Go to the lumber yard with a helper and hand pick your lumber.

Approximate, refer to the plans themselves. This list will give you a good idea of costs. This item is made of pressure treated, redwood, cedar, polycarbonate, twin wall polycarbonate panels and corrugated polycarbonate panels.
